HPZ-26047 Raymond Farmhouse Plan
Regular price
$1,495.00 USD
Regular price
Sale price
$1,495.00 USD
Unit price
per
Shipping calculated at checkout.

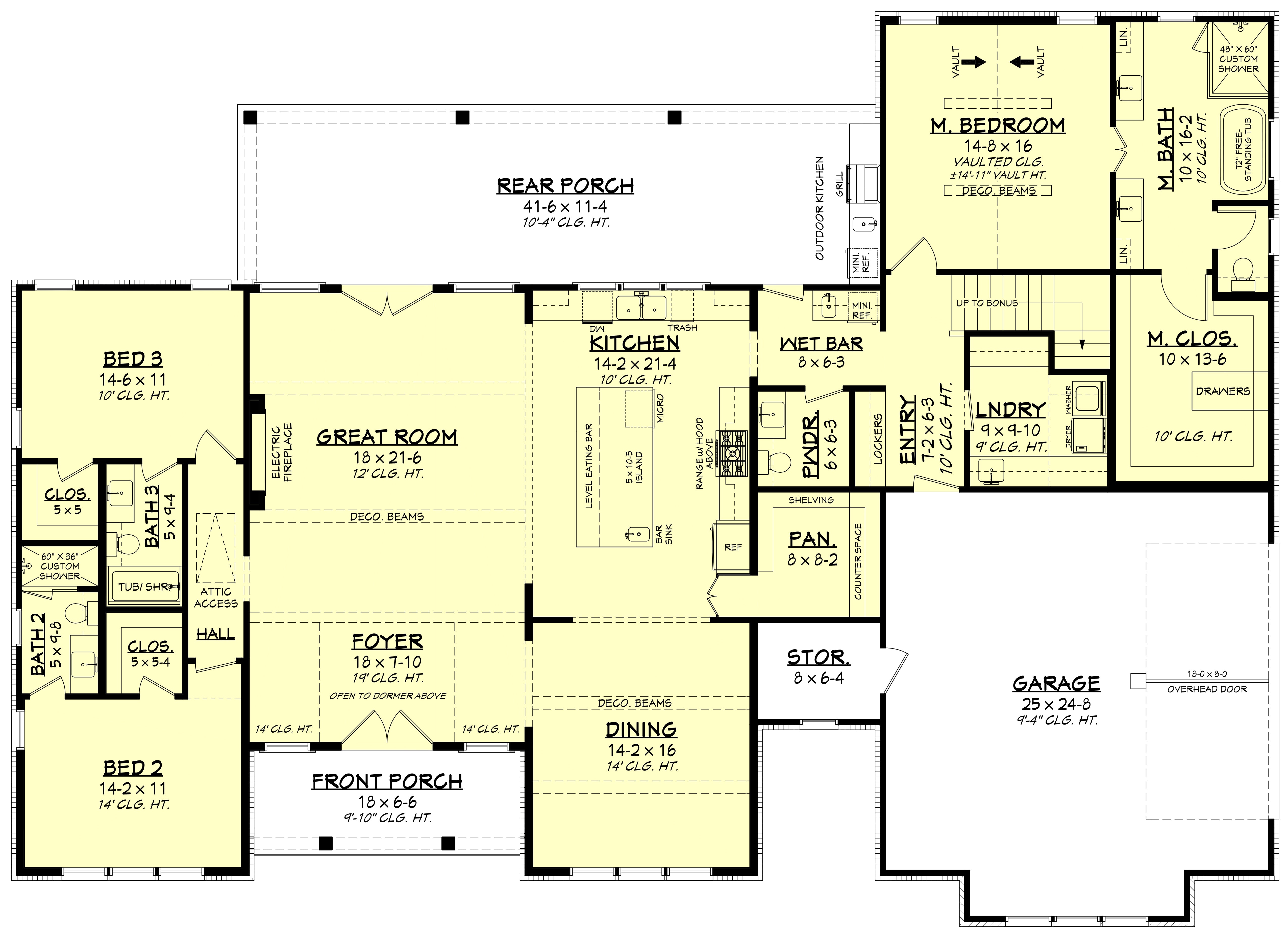

Floor Plan
DETAILS
HEATED SQ FT
First Floor:
2,688 SF
Second Floor:Bonus Area 439 SF
Total Heated Sq Ft:2,688 SF
UNHEATED SQ FT
Total Unheated Area:
1,763 SF
Carport:None
Bedrooms:
3
Full Baths:
3
Floors:
1
Garage Size:
681 SF
Width:
82'
Depth:
59'
Height:
28
Foundation:
Concrete Slab, Crawlspace also available
Main Roof Pitch:
12:12
Exterior Framing:
Stick Frame
CEILING HEIGHTS
First Floor:
10'
HPZ-26047 Raymond Farmhouse Plan
About this farmhouse plan:
- 2688 Heated Square Feet
- 3 Bedrooms
- 3.5 Bathrooms
- Single Story
- Foyer
- Wet Bar
- Bonus Room
- Walk-in Pantry
- Fireplace
- Storage
- Laundry Room
- Front and Rear Porch
- 681 Sq Ft Garage

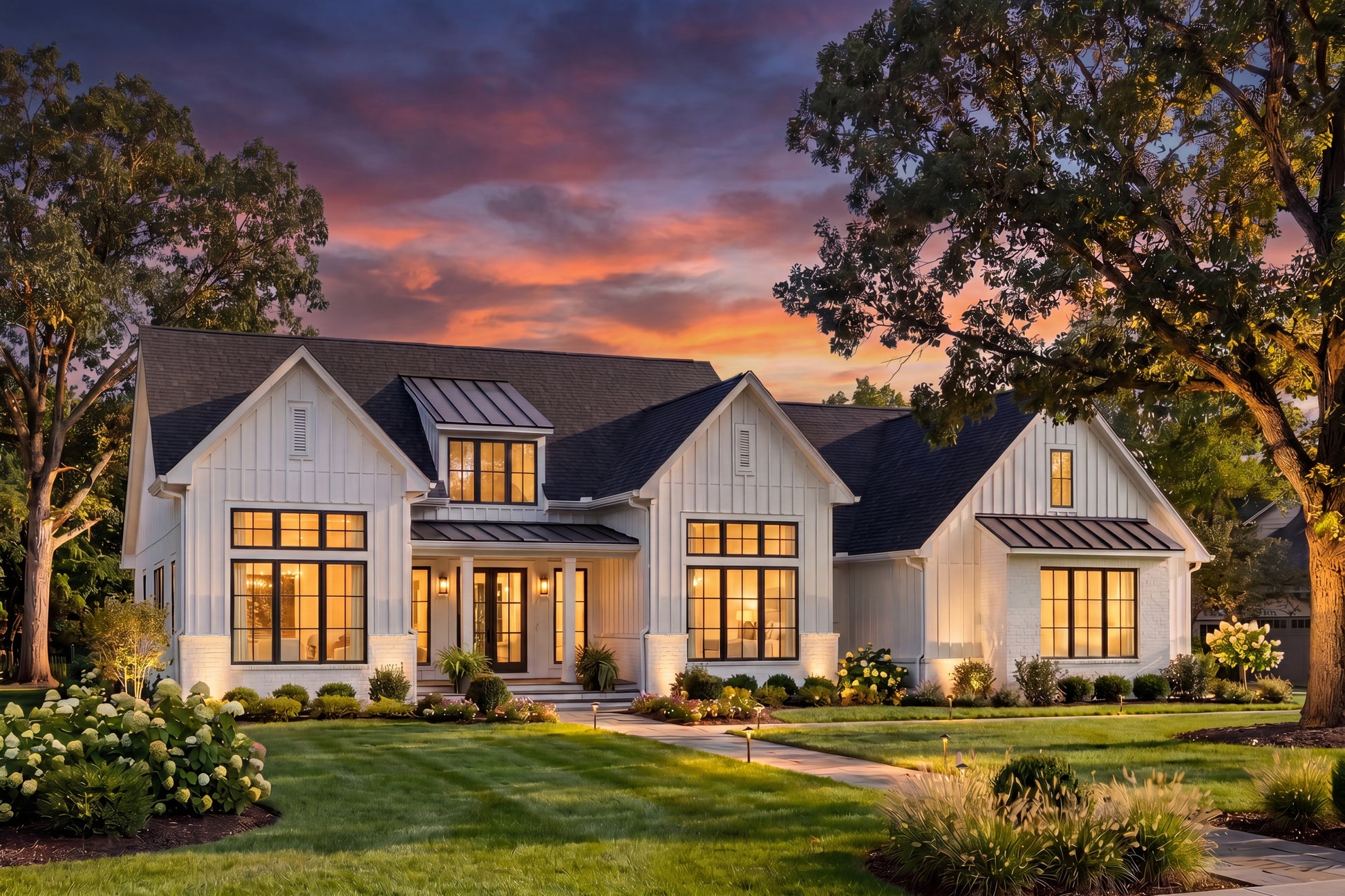

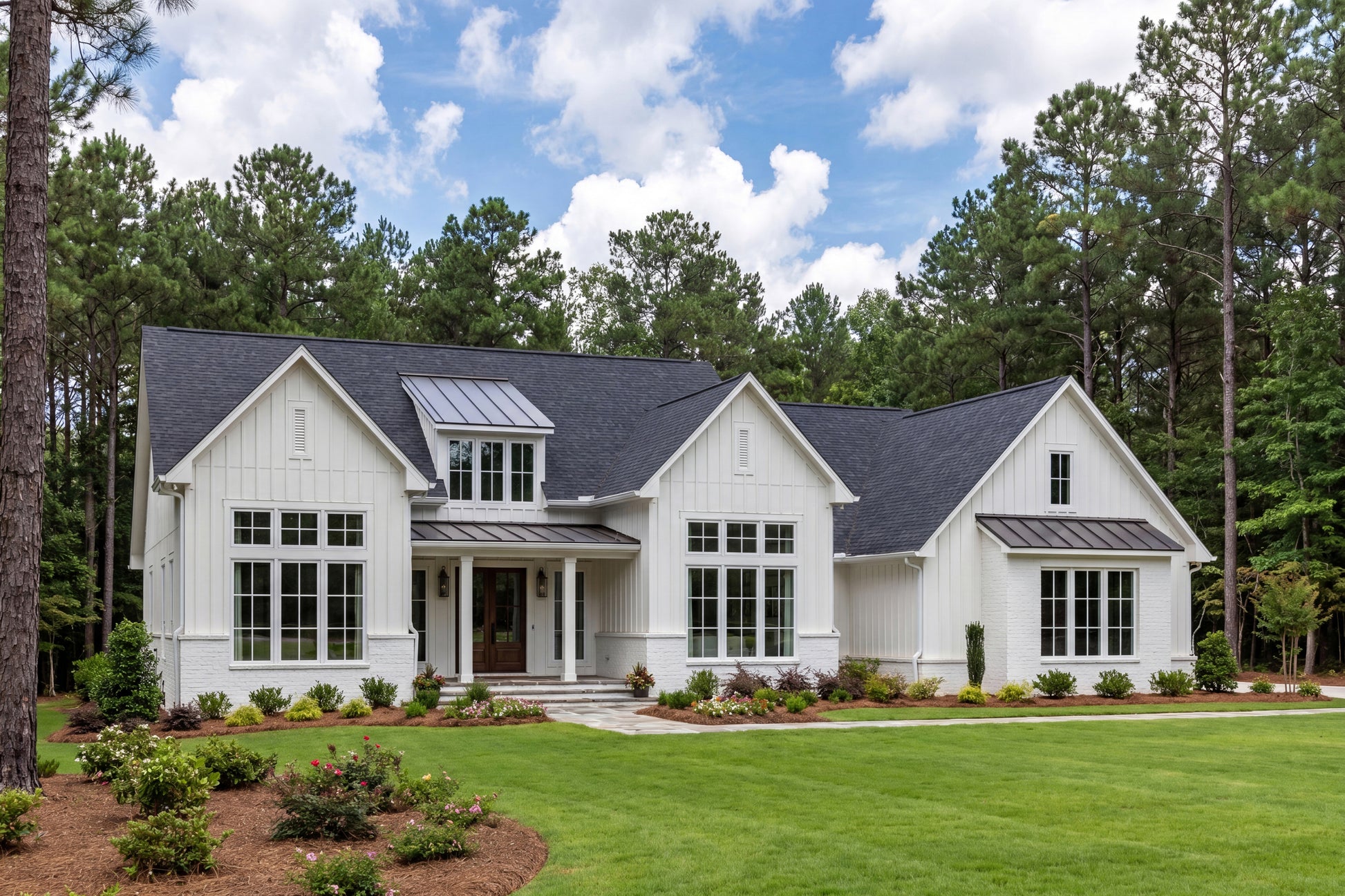

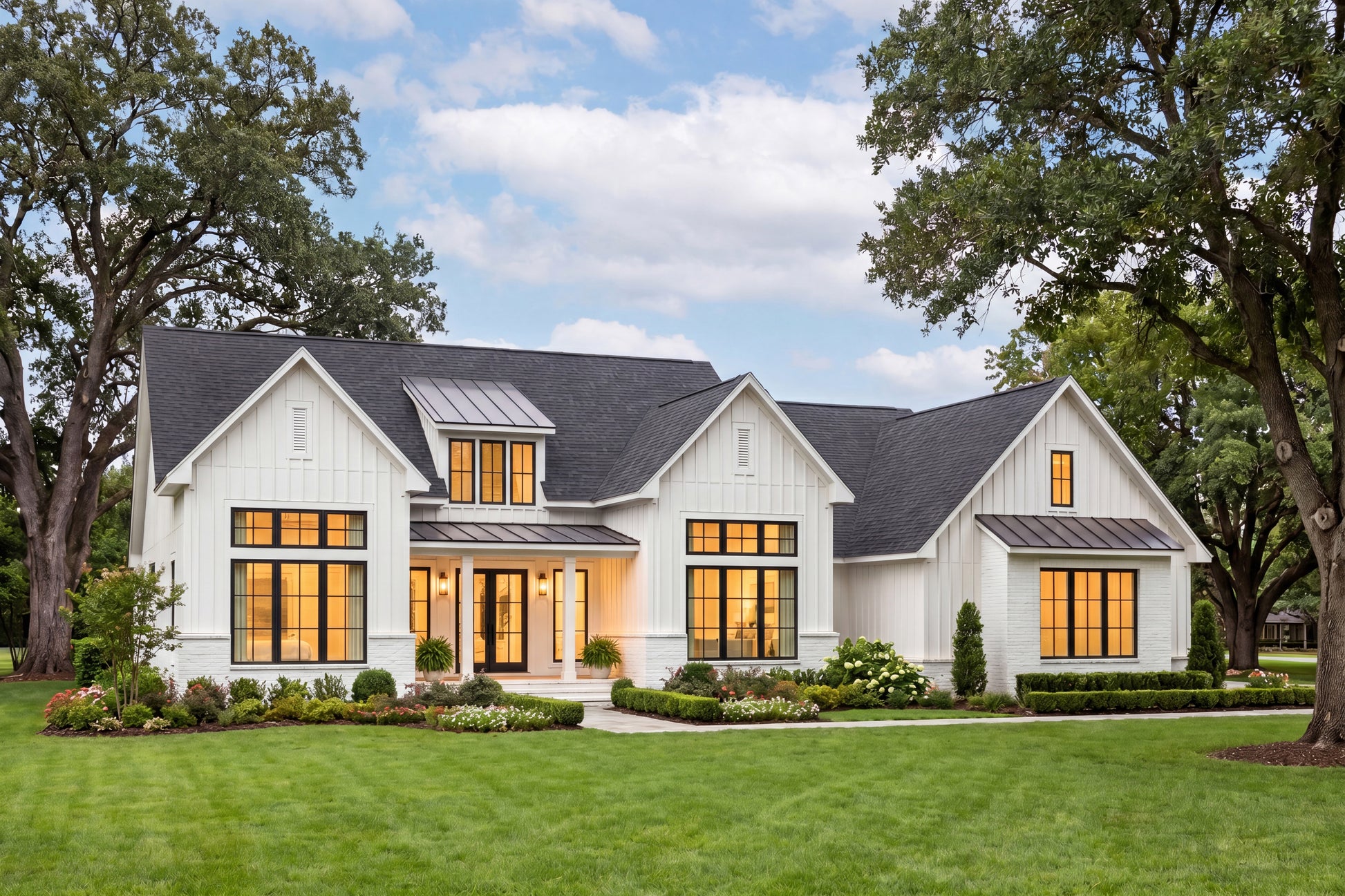

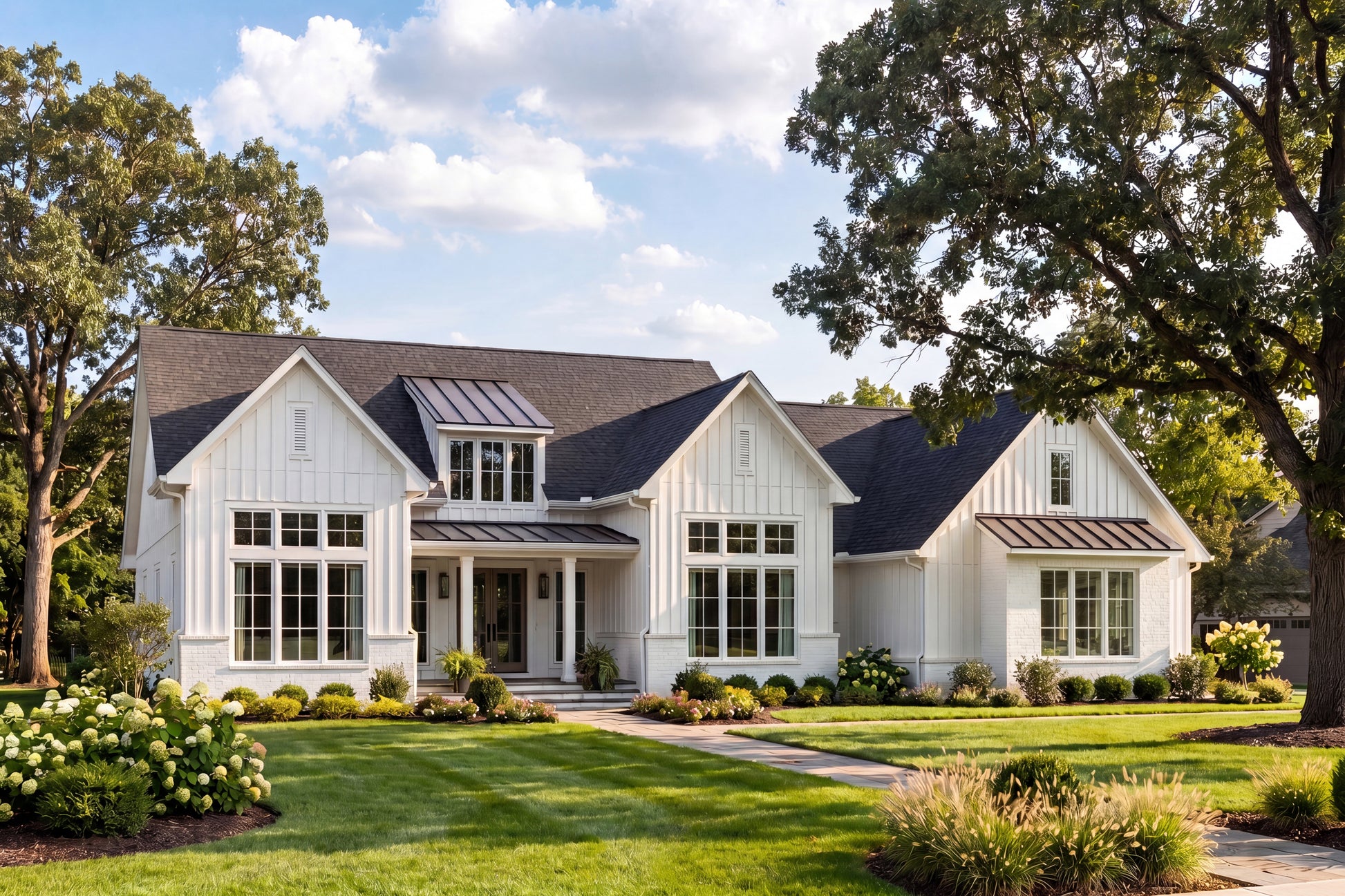

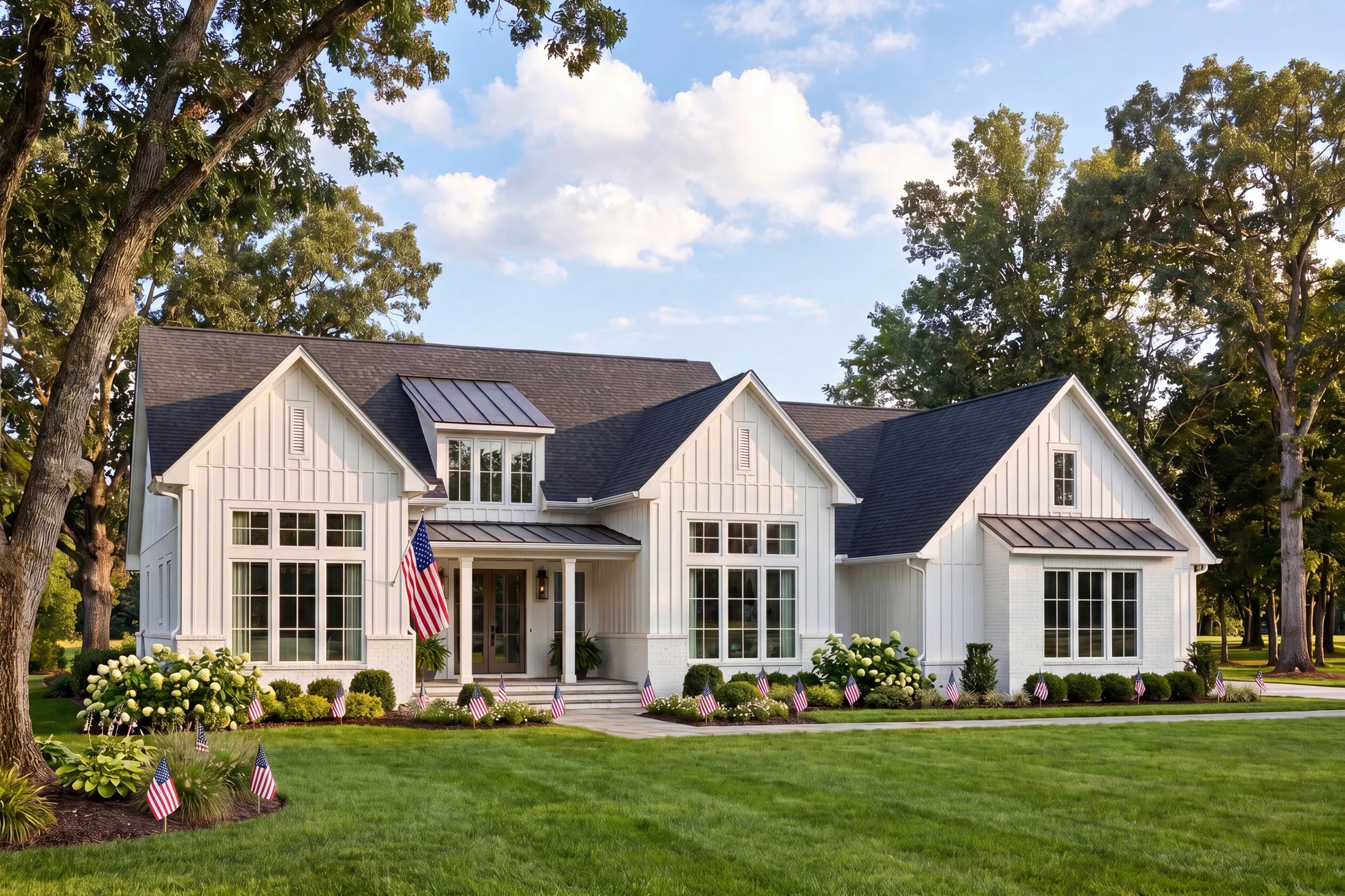

- A luxurious 3-bedroom, 3.5-bath modern farmhouse designed for both comfortable living and effortless entertaining.
- A dramatic foyer opens to a spacious great room with soaring ceilings, decorative beams, and a fireplace, while the gourmet kitchen features a large island, walk-in pantry, wet bar, and nearby dining room.
- The main bedroom is spacious with a vaulted ceiling and offers a spa-like bath and oversized walk-in closet.
- Two secondary bedrooms are thoughtfully positioned on the opposite side of the home, providing privacy for family and guests.

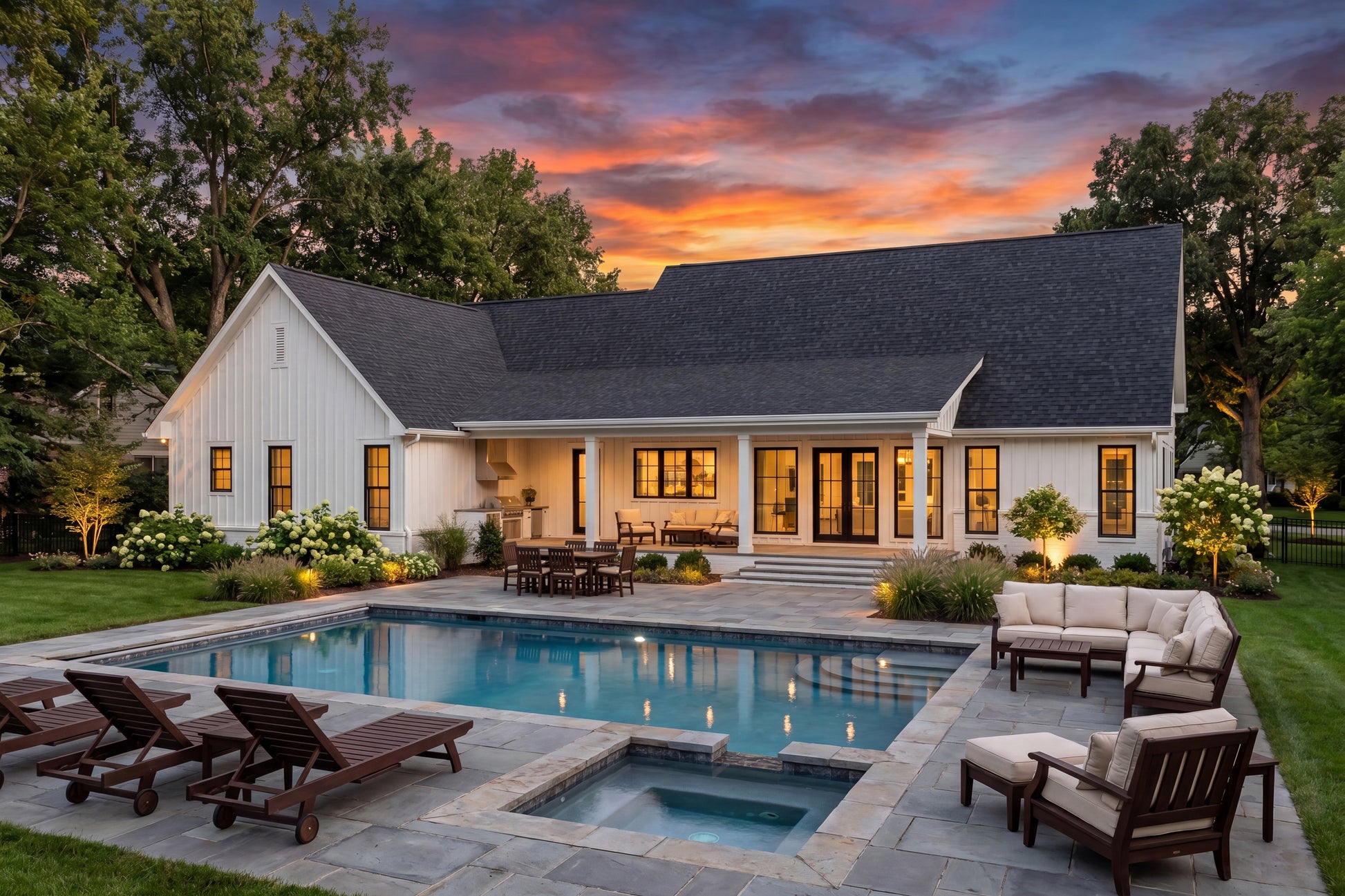

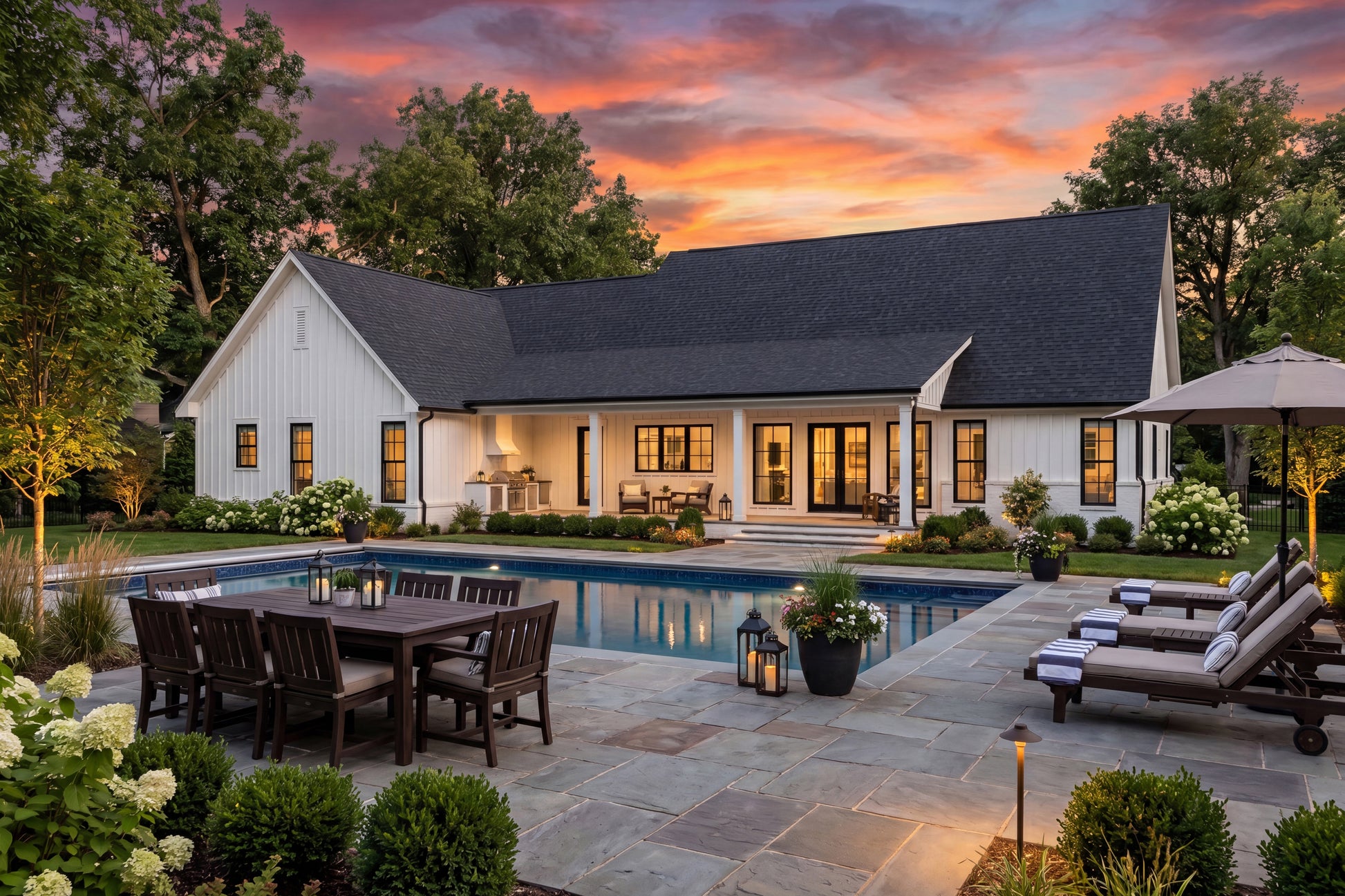

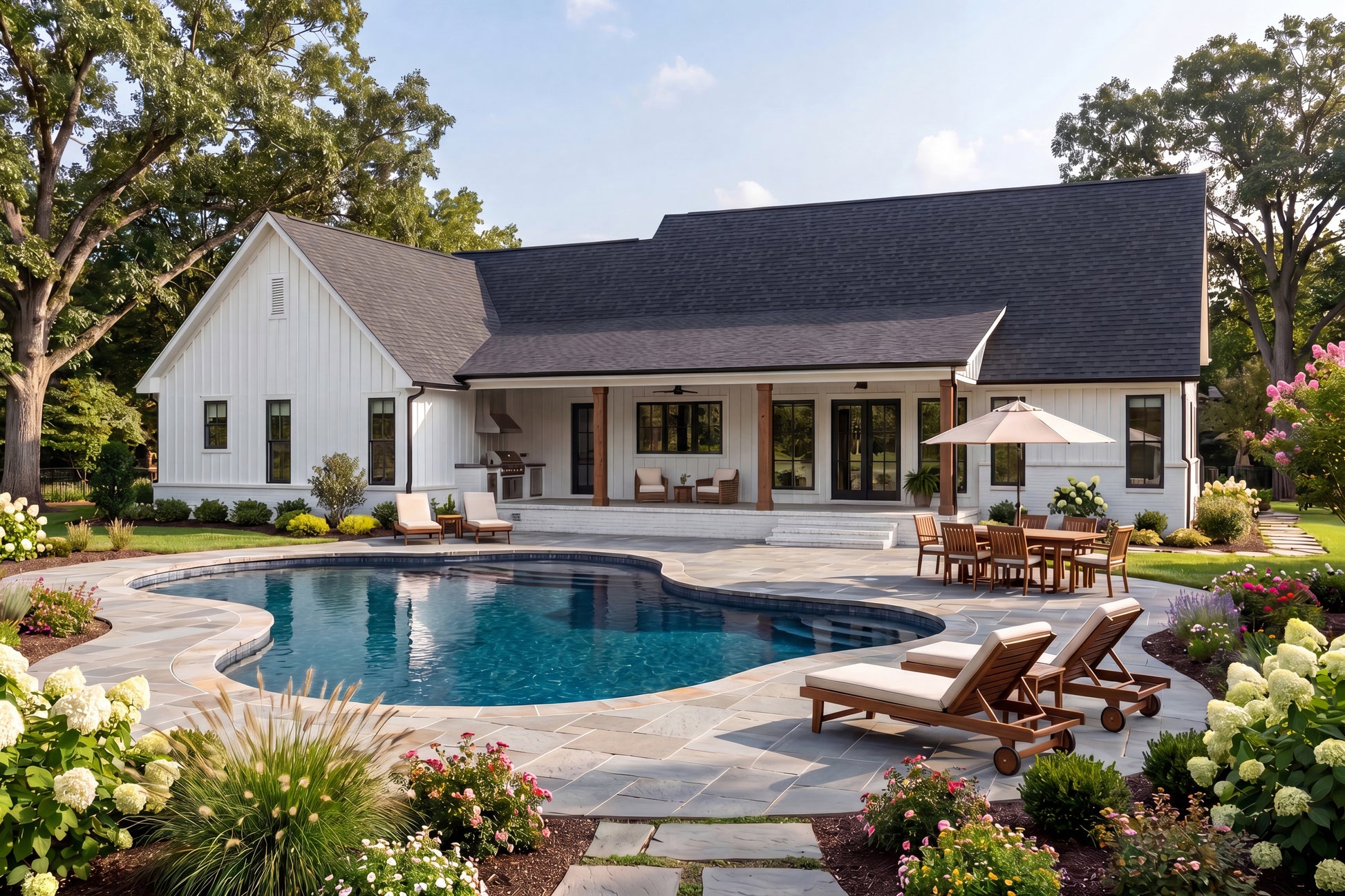

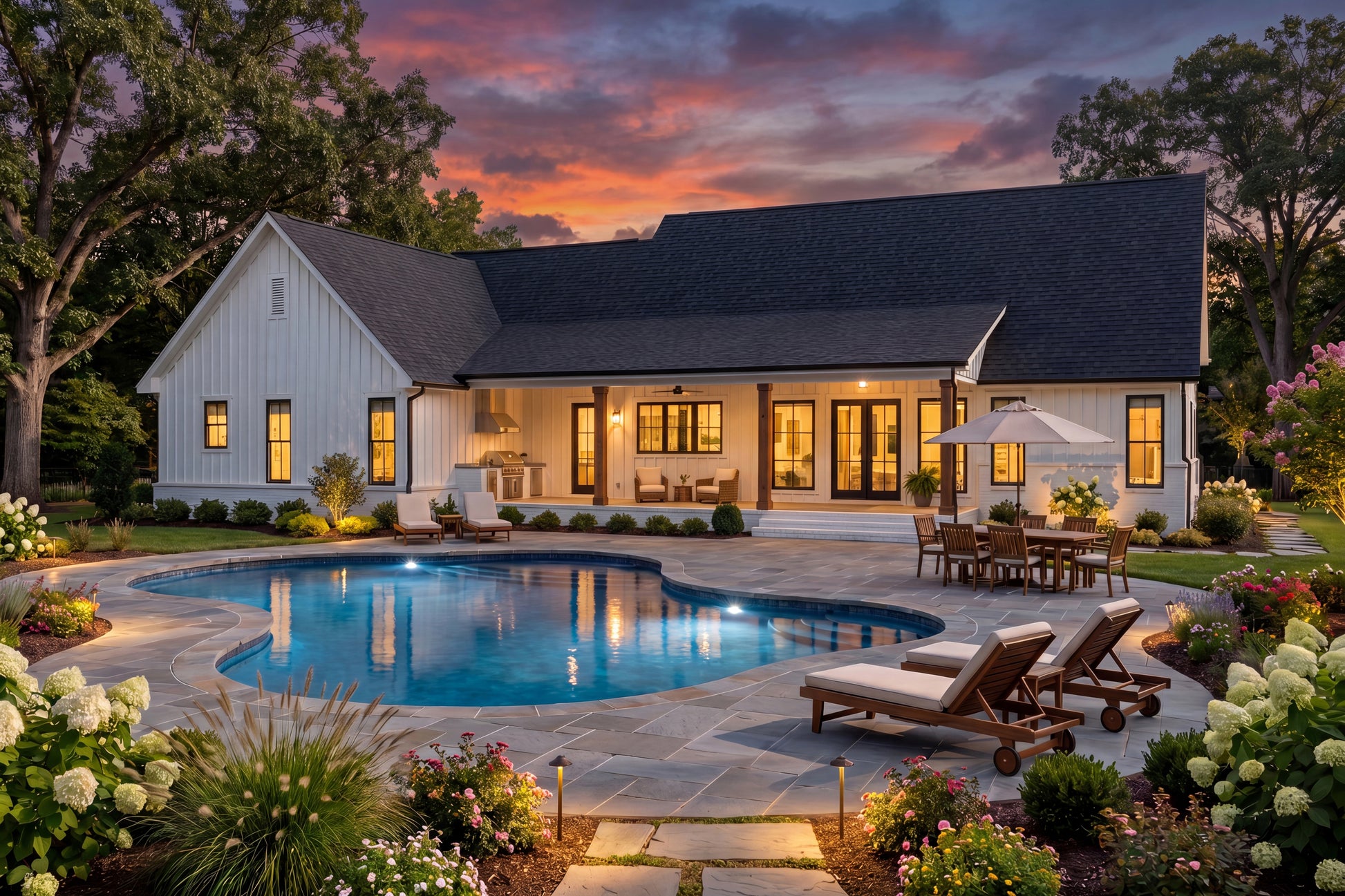

- A large covered rear porch with an outdoor kitchen extends the living space outdoors, making the Hawkridge ideal for gatherings year-round.

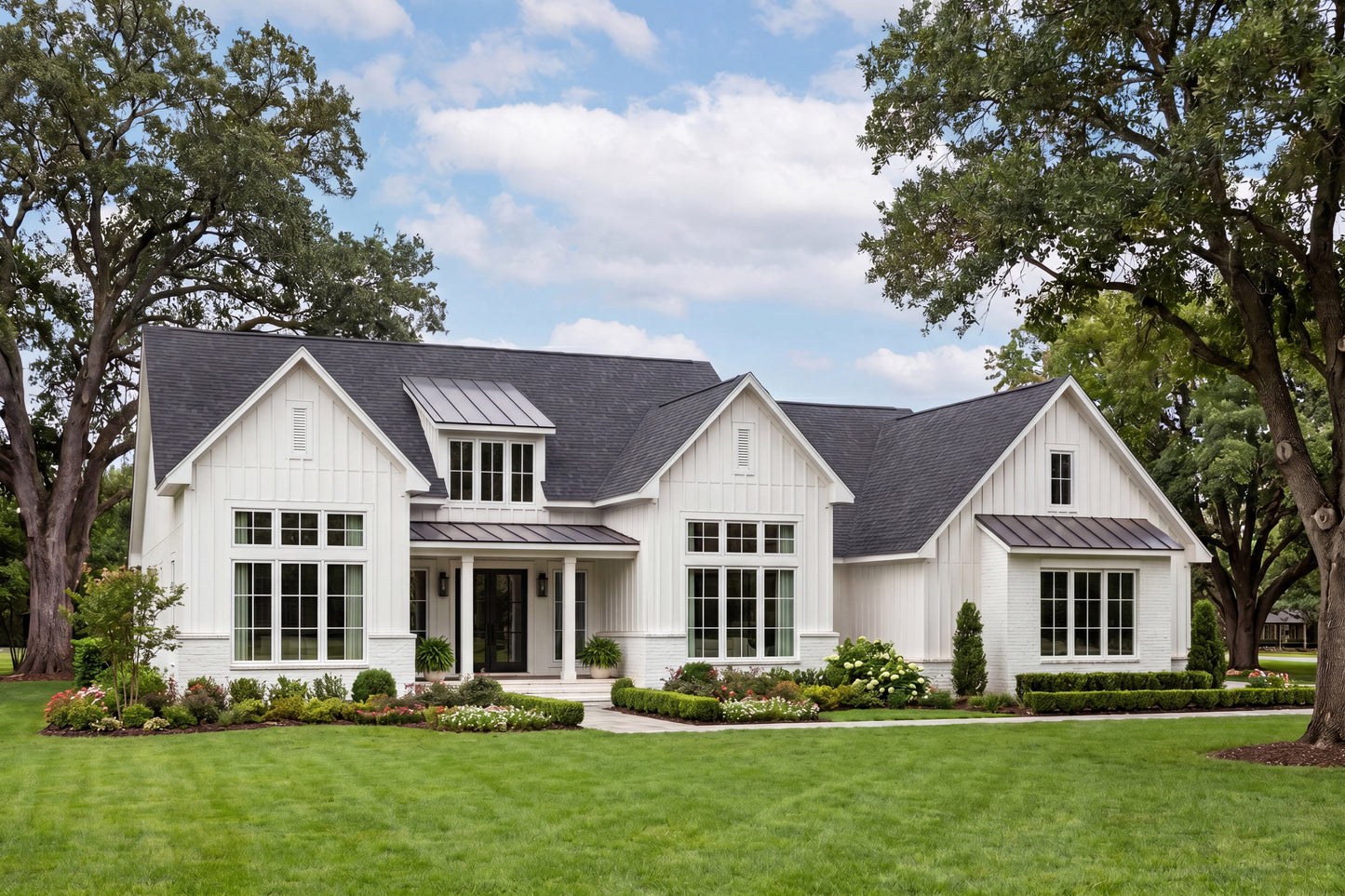

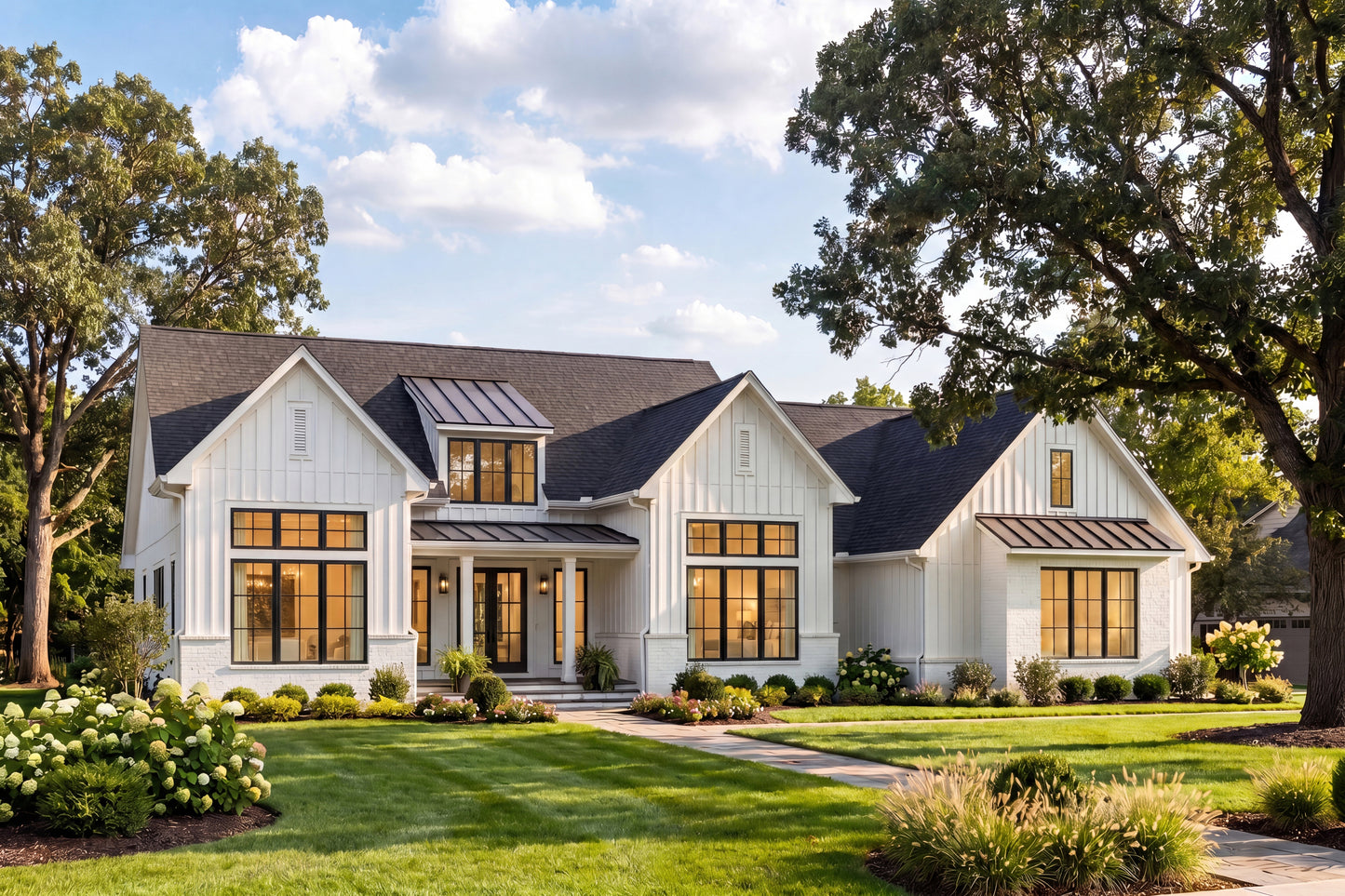

- With its stunning curb appeal, flexible layout, and luxury amenities throughout, this home perfectly blends timeless farmhouse style with modern convenience.
What's included in HPZ-26047:
Page 1 Cover Sheet with abbreviations, rendering, sheet index
Page 2 Foundation plan and details
Page 3 Detailed first floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

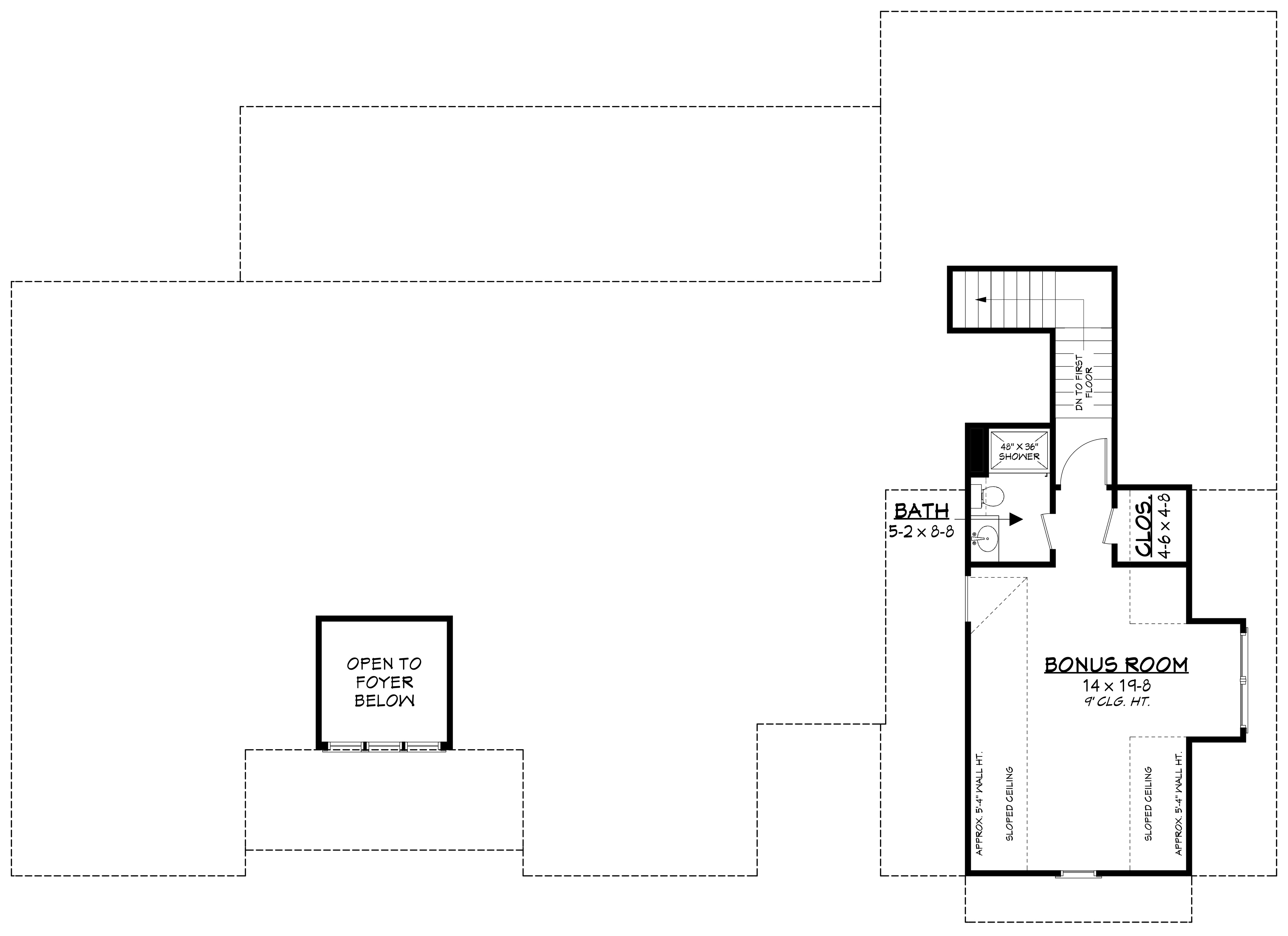

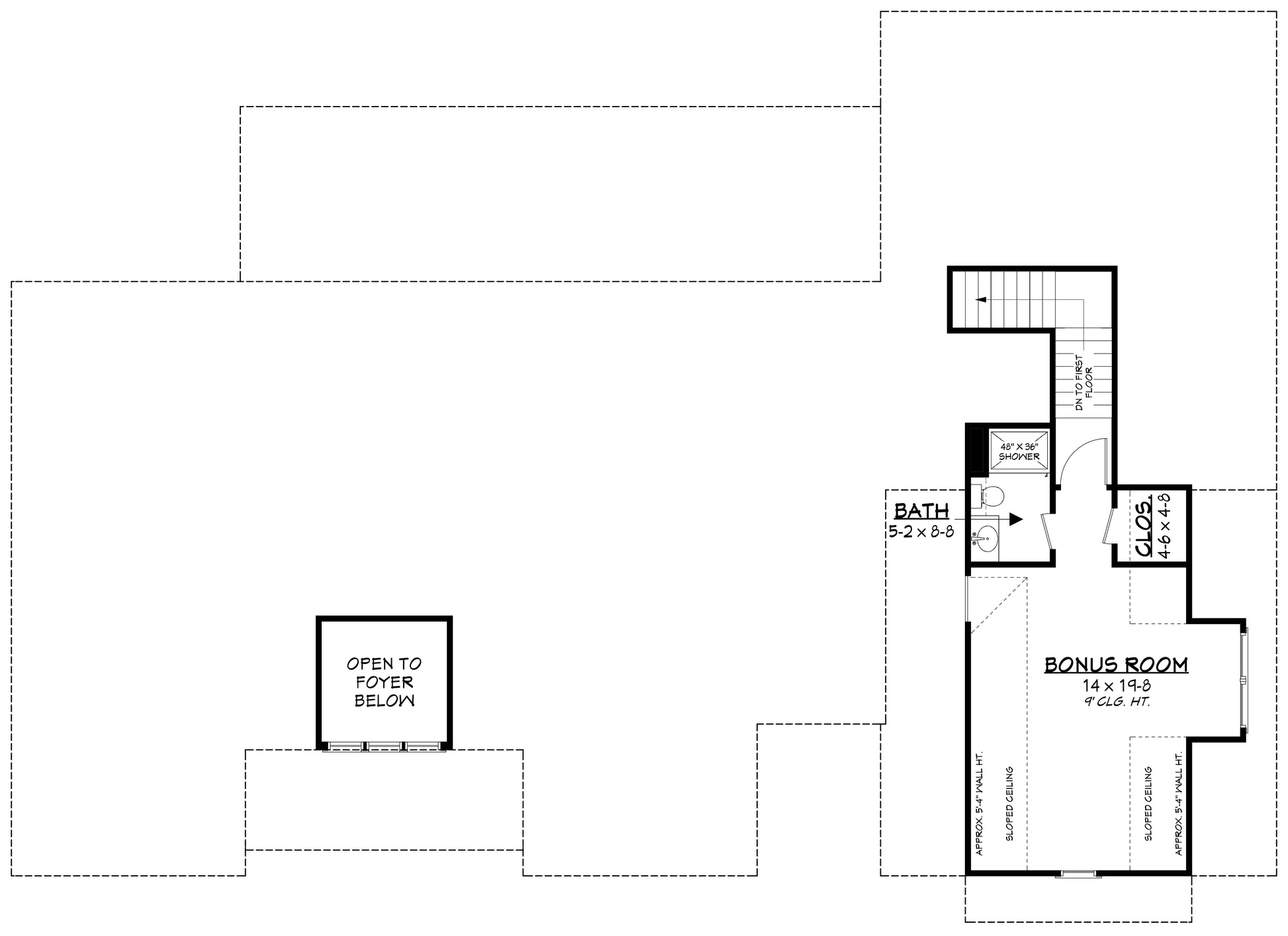

Page 4 Detailed bonus floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

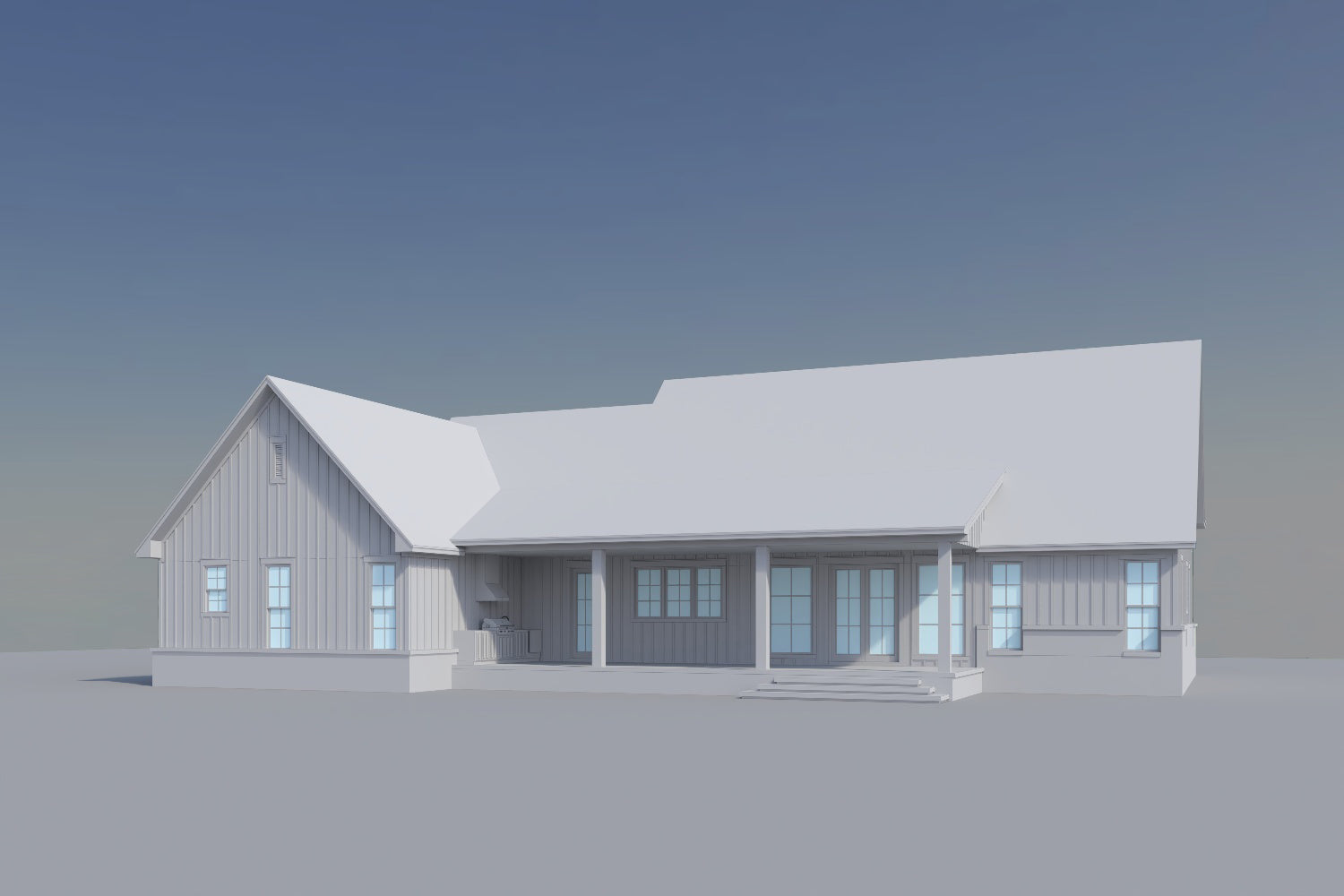

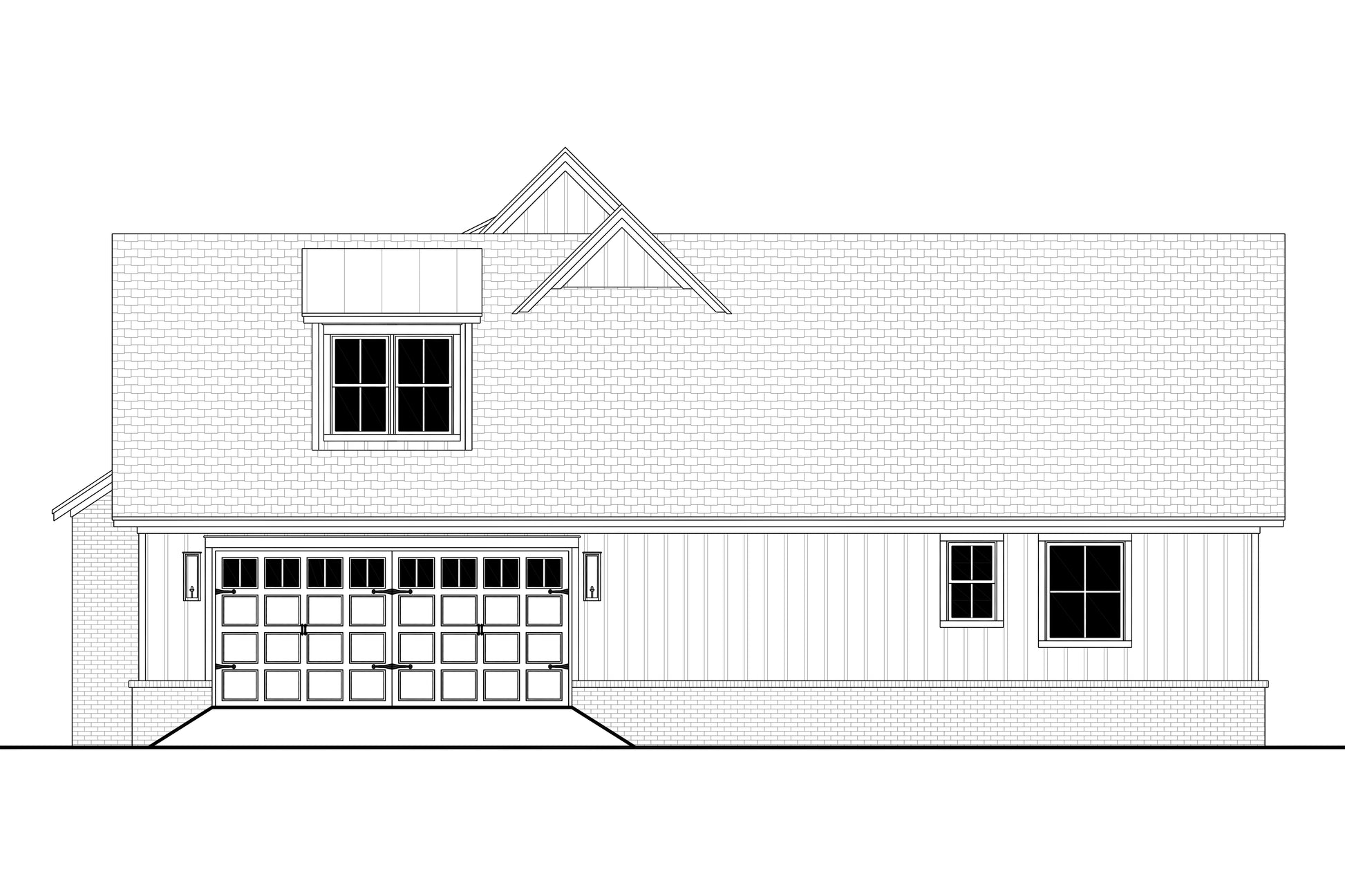

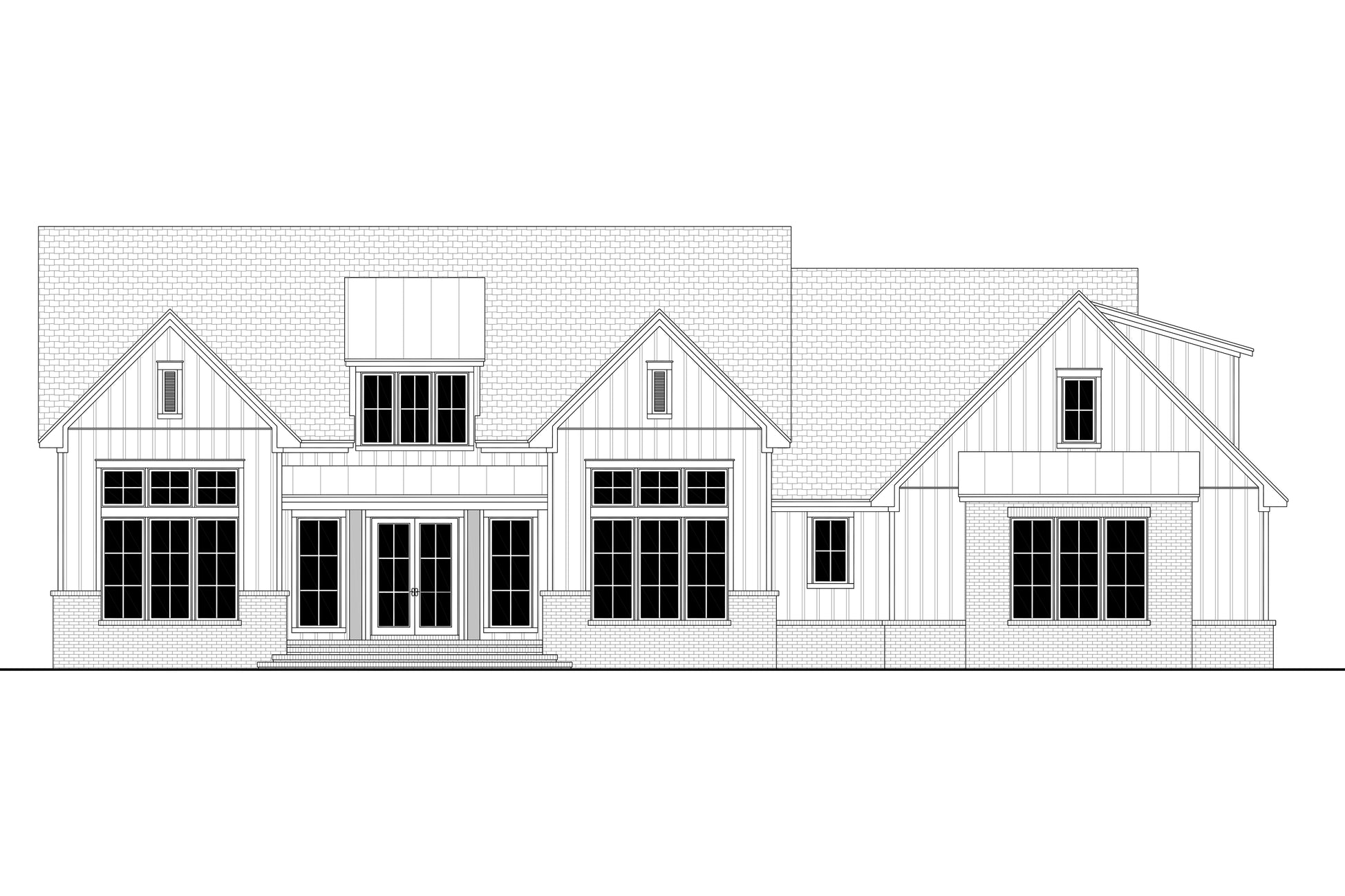

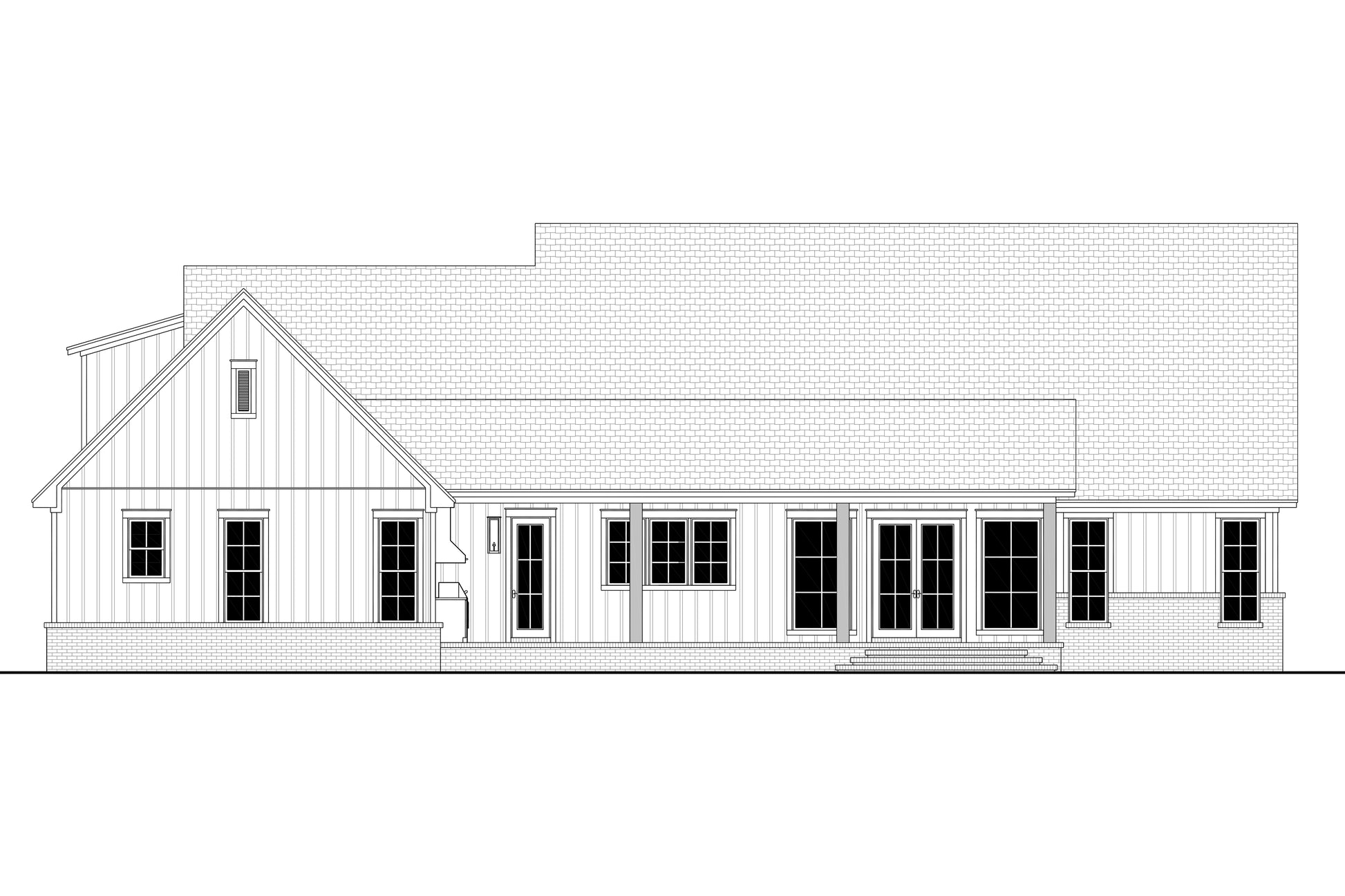

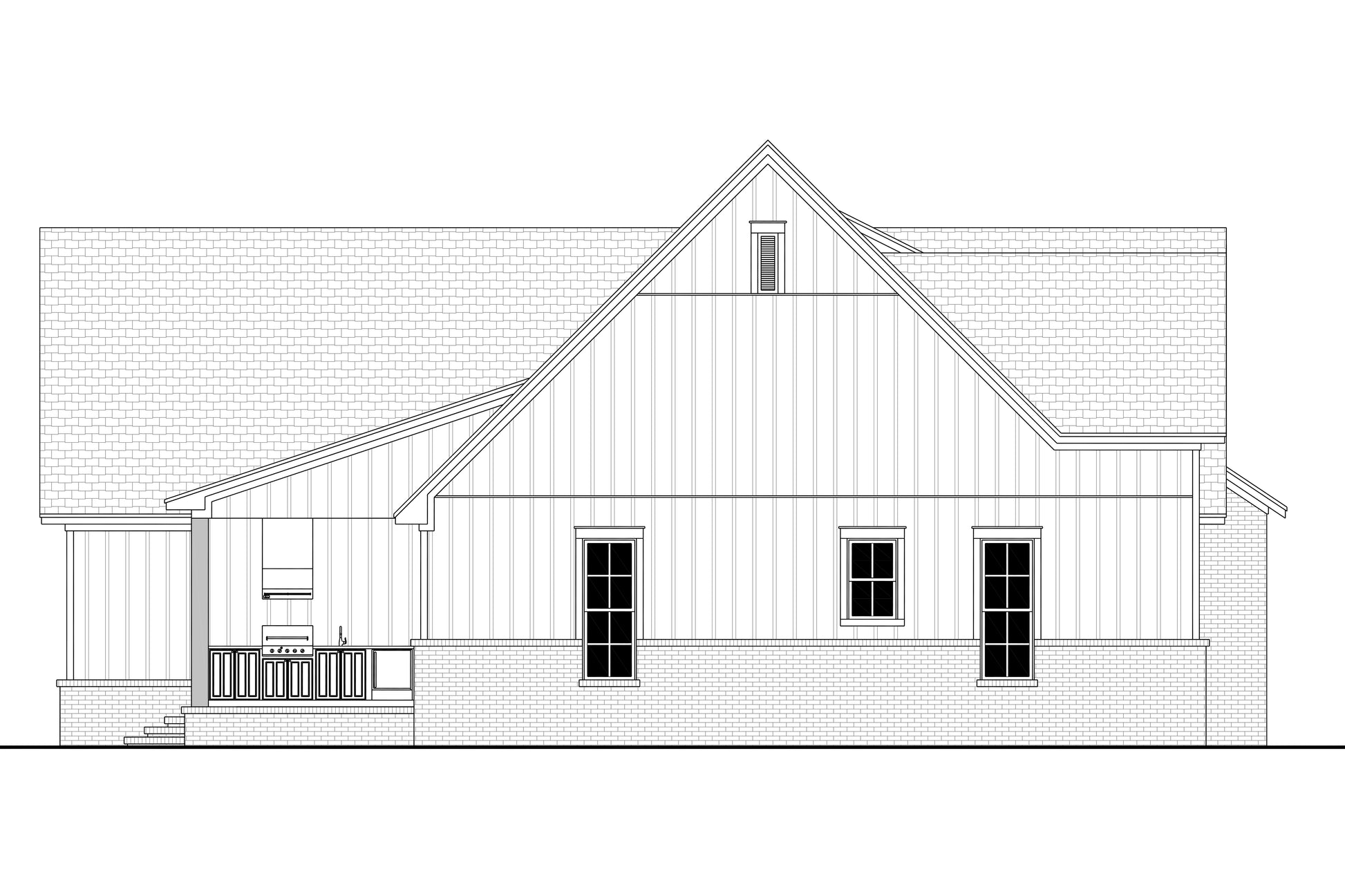

Page 5 Exterior views with additional notes and details
Page 6 Exterior views with additional notes and details
Page 7 Roof plan with additional notes and details
Page 8 Cross Section & kitchen cabinet views
Page 9 Electrical plans with notes and legend
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
For more barndominium floor plans, check out our complete collection of 3 bedroom barndominium floor plans.
Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.
What's Typically Included
What's Typically Included
THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
Our house plan sets typically have the following details:
4 Elevations – Front, Back, Both Sides
Detailed Floor Plan Drawing
Electrical Plans with placements for HVAC
Plumbing Plans with Placements
Flooring Plan
Roof Plan
Foundation Plan
For more information on what's included and examples of what your plans will look like, go here -> https://buildplans.com/pages/whats-included
Please Note: We work with many different draftspeople who work in many different ways. It should be noted that their plans may contain different details. THE SPECIFC DETAILS OF WHAT'S INCLUDED ON THESE PLANS IS CONTAINED IN THE PRODUCT DESCRIPTION. PLEASE SCROLL UP AND YOU WILL FIND IT UNDER "WHAT'S INCLUDED"
What's Not Included
What's Not Included
The following items are NOT included:
Architectural or Engineering Stamp. Our plans are engineering-ready! Can take them to a local engineer in your state.
Site Plan - We can provide this if needed for $300 additional.
Materials List - handled locally when required
Energy calculations - handled locally when required
Snow load calculations - handled locally when required
Delivery
Delivery
This plan is available as a digital product or printed + shipped.
If you select digital, the plan will be delivered to you via email as a PDF file, no matter what time it is.
If you select printed + shipped, your order will ship in 24x36 format within 1 business day of your order.
We ship from the midwest in order to serve the entire country within 3-5 business days!
Return policy
Return policy
All barndominium house plan purchases are FINAL. There are no exchanges or refunds due to the digital nature of the product. Please make sure that the plan you have selected is going to fit your needs.
Wondering about modifications, and making sure you like the changes? While all plan sales featuring modifications are also FINAL, here's a bit about how the modification process works:
After your order is placed, our team gets started on your modifications.
First, we send over an initial floor plan draft to make sure the modifications are correct. Any "clarifying changes" are included at no additional cost. Things like "Oh I meant for the door to swing this way, not that way" or "kitchen appliances should be arranged in XYZ way". Any major changes to the plan like adding a bedroom, a second story, or a different foundation are an additional fee. 99% of our customers do not incur an additional fee.
After the floor plan is confirmed, we send over the floor plans + elevations. We do the same process, and once you're good with the elevations, we finish up your final plans.
